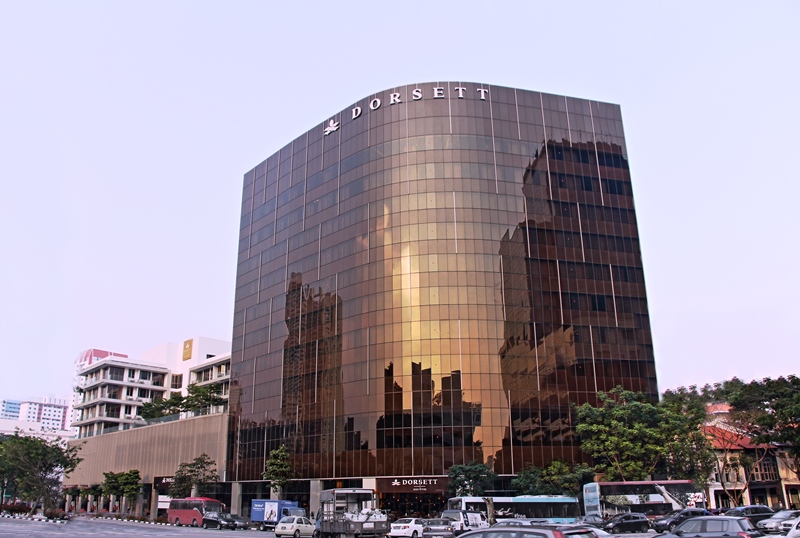

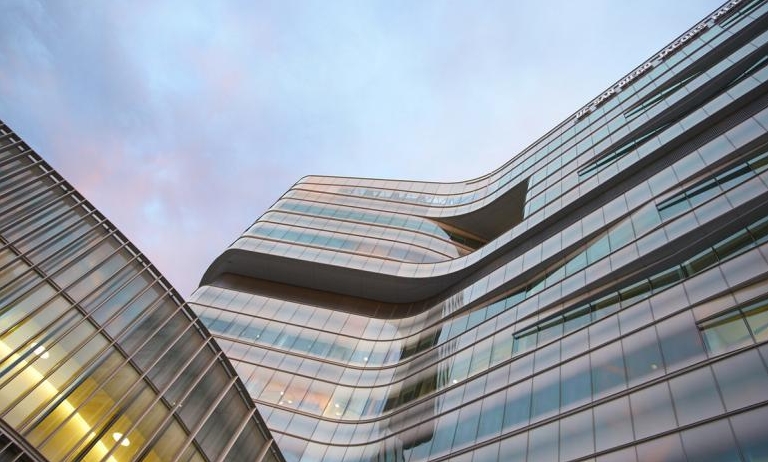

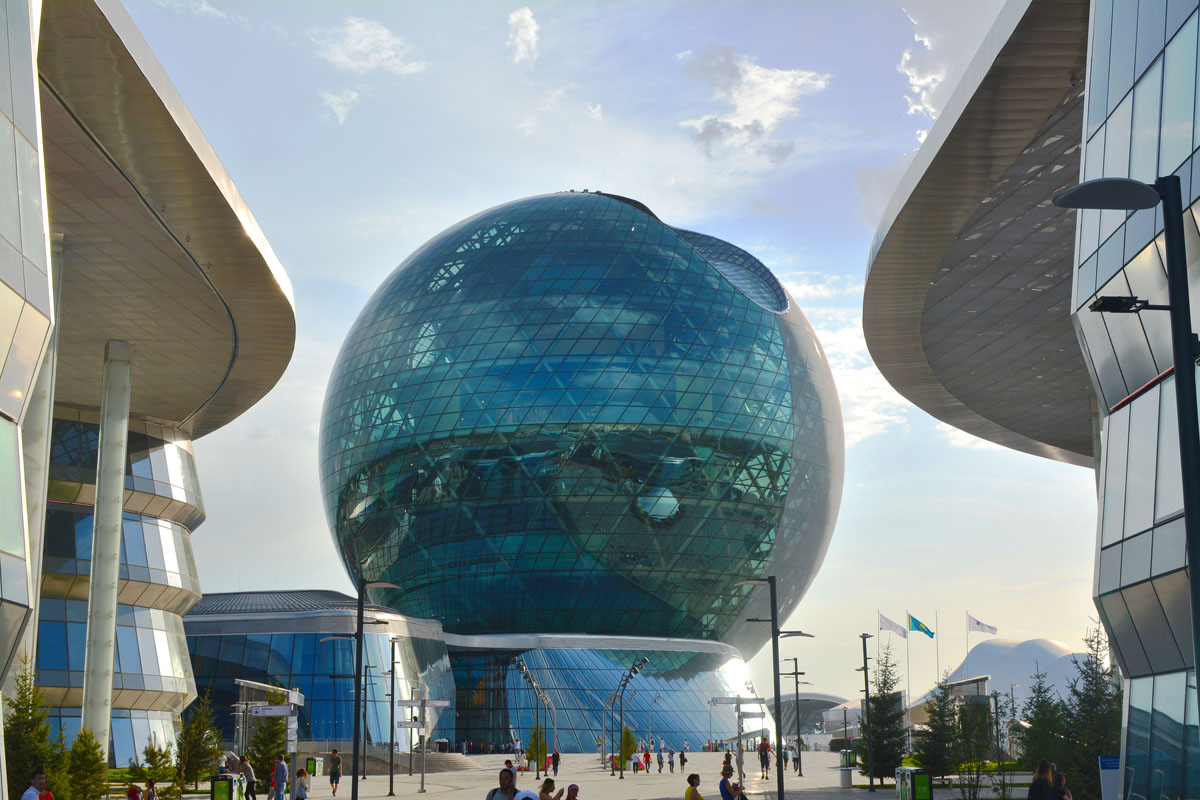

Segmented Curved Unitized Curtain Wall

Gas Filling: Dry air, Argon

Sealant: butyl rubber sealant with polysulfide sealant or structural silicone based Sealant

Insulated Glass can be randomly combined by transparent glass, tinted glass, tempered


Product Detail


1. All unit panels are pre-assembled in shop for the best QA/QC assurance.
2. Various type of design for 3 dimensional installation tolerances up to 25mm or 1 inch to avoid site rectification works.
3. Shorten installation period-reduce field labor resource.
4. Unitized curtain wall is like a “flexible skin” of building for better allowance of inter-story differential movement.
5. Excellent water controlled drainage system for better weather resistance.


1. inside packing: Thick paper and polyfoam for first protection.

2. outside packing: wooden shelf for the second protection.

Our products is fully designed to international standard like AAMA,ASTM,EN,BS,AS,CANS.etc and is being tested according to Australian Standard AS4284. For more technical information about our products , please contact Shanghai Metal for further information.


Also can be as your request.


Aesthetic Features:

1. 4-side structural glazed,SSG System

2. 2-side horizontal glazed, SSG System

3. 2-side vertical glazed, SSG System

4. 4-side captured System.

5. Optional for various design of capping, architectural feature and sun shading.
