We provide various marines anchors, including Hall anchor, Japan stockless anchor, and U.S.N stockless anchor. They are the most popular stockless anchors in the modern world.

Specification of Marine Anchor
Hall Anchor
1) Nominal Weight: 40 kg~46000 kg
2) H(Type A): 557mm ~5847mm
H(Type B): 557mm ~5847mm
H(Type C): 430mm ~4777mm
3) h: 303mm~3165mm
4) h1:67mm~695mm
5) L: 430mm~4505mm
6) L1:303mm~3165mm
7) B1: 198mm~2078mm

Japan Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

U.S.N. Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

Hall Anchor
1) Nominal Weight: 40 kg~46000 kg
2) H(Type A): 557mm ~5847mm
H(Type B): 557mm ~5847mm
H(Type C): 430mm ~4777mm
3) h: 303mm~3165mm
4) h1:67mm~695mm
5) L: 430mm~4505mm
6) L1:303mm~3165mm
7) B1: 198mm~2078mm
Japan Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm
U.S.N. Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

The company is fully equipped with production facilities, including:

Surface Treatment

Black bitumen paint, anti-rusting paint or customized

Packaging

Packaging & Delivery of Marine Anchor

Packaging material: standard wooden case

Delivery detail: in 2 months

More

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:

Quality of Marine Anchor

Newcore Global Pvt. Ltd Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide other mooring equipment, like Chocks, Panama Chocks, Fairlead Roller, Single-roller fairlead and Bollard. We guarantee they are of the same best quality.

]]> http://www.newcoreglobal.com/product/marine-anchor-hall-anchor-japan-stockless-anchor-u-s-n-stockless-anchor/feed/ 0 Spek Anchor http://www.newcoreglobal.com/product/spek-anchor/ http://www.newcoreglobal.com/product/spek-anchor/#respond Mon, 07 Aug 2017 15:20:18 +0000 http://www.newcore.net.in/?post_type=product&p=764 Material: ZG200-400C \ Weight: 80KGS-26000KGS Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS]]> Product Detail

NEWCORE GLOBAL PVT. LTD.  will be your best bet to buy anchors in our company. The Spek anchor is designed to fit in anchor pockets. Spek anchors have become one of the most commonly used stockless anchors on new buildings nowadays.

Specification of Type M Spek Anchor
Type M Spek Anchor
Nominal Weight: 80 kg~20000 kg

Specification of Type SR Spek Anchor
Type M Spek Anchor
Nominal Weight: 100 kg~26000 kg

The company is fully equipped with production facilities, including:

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:

Packaging

Packaging & Delivery of Marine Anchor

Packaging material: standard wooden case

Delivery detail: in 2 months

More

Surface Treatment

Black bitumen paint, anti-rusting paint or customized

Quality of Marine Anchor

NEWCORE GLOBAL PVT. LTD. is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide other mooring equipment, like Chocks, Panama Chocks, Fairlead Roller, Single-roller fairlead and Bollard. We guarantee they are of the same best quality.

]]> http://www.newcoreglobal.com/product/spek-anchor/feed/ 0 Marine Shackle http://www.newcoreglobal.com/product/marine-shackle-2/ http://www.newcoreglobal.com/product/marine-shackle-2/#respond Mon, 07 Aug 2017 15:09:36 +0000 http://www.newcore.net.in/?post_type=product&p=759 Nominal Weight: 0.03 - 69.85 kg Surface Treatment: Galvanized]]> Product Detail

Specification of Marine Shackle:
The table below shows standard sizes. Other sizes are available on request and can be manufactured to order.
1. Body Diameter: 3/16 inch – 3 inch
2. Pin Diameter: 1/4 inch – 3.1/4 inch
3. W.L.L: 1/3 ton – 85 ton
4. N.W: 0.03 kg – 69.85 kg

More

Product Features of Marine Shackle:

• Stainless steel D shackles manufactured from 17/4PH precipitation hardening martensitic stainless steel

• Excellent for general lifting applications – high tensile properties while avoiding work hardening

• Corrosion resistance similar to 18/8 grade steels (304)

• Factor of Safety 6:1

• Available with 4 pin types – Standard Screw Collar Pin (A Type), Extended Screw Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)

• Manufactured using the latest technology in electrical upset forging

Quality of Marine Shackle:

• All shackles are manufactured in accordance with the Machine Directive 2006/42/EC

• Inspection certificate BS EN 10204 3.1b available on request.

• High quality finish and excellent polish

Application of Marine Shackle:

• General lifting in off-shore applications

• General lifting and tethering in leisure marine applications

• General lifting purposes

]]> http://www.newcoreglobal.com/product/marine-shackle-2/feed/ 0 HHP Anchor (High Holding Power Anchor) http://www.newcoreglobal.com/product/hhp-anchor-high-holding-power-anchor/ http://www.newcoreglobal.com/product/hhp-anchor-high-holding-power-anchor/#respond Mon, 07 Aug 2017 14:58:56 +0000 http://www.newcore.net.in/?post_type=product&p=755 Material: ZG200-400C Weight: 20KGS-25000KGS Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS]]> Product Detail

Newcore Global Pvt. Ltd supply all marine anchors which you all want to find, including popular High Holding Power Anchor and ABS, LR, BV, LR, DNV, GL, KR, IRS, CCS Certificate is available for our products, with the advantage of widely source, good quality and service, we could be your reliable partner in China.

Specification of AC-14 High Holding Power Anchor(HHP Anchor)
AC-14 HHP Anchor
Nominal Weight: 56 kg~100000 kg
The Ac-14 is one of the most versatile of the high holding power anchors. It is used both in shipping and in the aquaculture industry.
The Ac-14 is available in a self colored finish or in a galvanized finish.

Specification of Pool TW Anchor
Pool TW Anchor
Nominal Weight: 20 kg~100000 kg

Specification of Pool N Anchor
Pool N Anchor
Nominal Weight: 60 kg~28875 kg

Specification of Flipper Delta Anchor
Delta Anchor
Nominal Weight: 300 kg~100000 kg

The company is fully equipped with production facilities, including:

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:

Packaging

Packaging & Delivery of Marine Anchor

Packaging material: standard wooden case

Delivery detail: in 2 months

More

Surface Treatment

Black bitumen paint, anti-rusting paint or customized

Quality of Marine Anchor

Newcore Global Pvt. Ltd  is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide other mooring equipment, like Chocks, Panama Chocks, Fairlead Roller, Single-roller fairlead and Bollard. We guarantee they are of the same best quality.

]]> http://www.newcoreglobal.com/product/hhp-anchor-high-holding-power-anchor/feed/ 0 Stud Link Chain http://www.newcoreglobal.com/product/752/ http://www.newcoreglobal.com/product/752/#respond Mon, 07 Aug 2017 14:48:28 +0000 http://www.newcore.net.in/?post_type=product&p=752 Material: U1, U2, U3 Surface: galvanized & Self colored Certificate: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA]]> Product Detail

We are the specilized manufacturer and the exporter of marine anchor chain,Offshore Mooring Chain, Stud Link & Studless Marine Chains.As one of the most widely used anchor chain, stud link chains and open-link chains play an important role in linking anchors and ships.

We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, Newcore can offer you best quality as well as services.

Specification of Stud Link Chain

Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 98 kg to 3010 kg
U1 Stud Link Chain:
Proof Load: 46kn – 1290kn
Breaking Load: 66kn – 1840kn
U2 Stud Link Chain:
Proof Load: 66kn – 1840kn
Breaking Load: 92kn – 2580kn
U3 Stud Link Chain:
Proof Load: 92kn – 2580kn
Breaking Load: 132kn – 3690kn

We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, Newcore can offer you best quality as well as services.
Specification of Open Link Chain
Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 85.41 kg to 2697.65 kg
U1 Open – Link Chain:
Proof Load: 28.75kn – 901.60kn
Breaking Load: 57.71kn – 1813.00kn
U2 Open – Link Chain:
Proof Load: 41.20kn – 1264.20kn
Breaking Load: 82.60kn – 2528.40kn
U3 Open – Link Chain:
Proof Load: 56.40kn – 1768.90kn
Breaking Load: 112.80kn – 3537.80kn

Technical Information

Parameter of Stud Link Chain

Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!

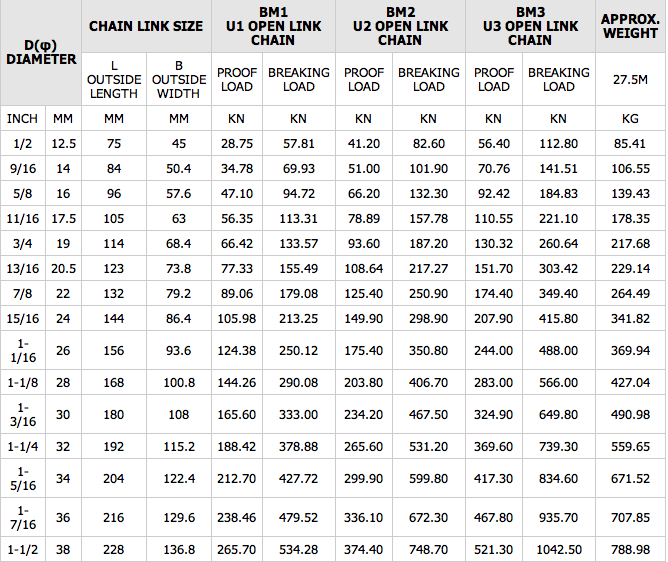

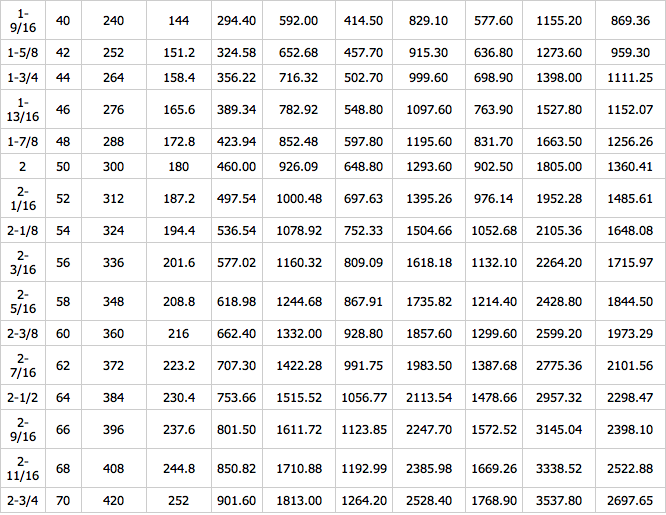

Parameter of Open Link Chain

Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!

 More

Feature of Marine Anchor Chain

1. Most stud link chain is used on larger vessels and is rarely available in sizes under 12.5mm diameter.

2. Stud link chain is normally supplied in shot lengths (27.5mtrs long) which can then be joined together using a Kenter shackle. Black bitumastic paint or galvanized finishes are available.

3. Continuous lengths can be made to order with optional extras with open end links, welded swivel assemblies, D type anchor shackles.

Package of anchor chain

NEWCORE GLOBAL PVT. LTD  Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Package material: wooden case and iron drum or bracket

Quality of Anchor Chain

NEWCORE GLOBAL PVT. LTD  is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Certificate of Marine Anchor Chain

Marine chain has been recognized by 11 Classification Societies such as ABS, BV, CCS, CR, DNV, GL, KR, NK, RINA, RMRS, LR

]]> http://www.newcoreglobal.com/product/752/feed/ 0 Stud Link Chain http://www.newcoreglobal.com/product/stud-link-chain/ http://www.newcoreglobal.com/product/stud-link-chain/#respond Mon, 07 Aug 2017 14:32:33 +0000 http://www.newcore.net.in/?post_type=product&p=747 Diameter: 12.5 to 70 mm Outside Length (L): 75mm – 420mm Outside Width (B): 45mm – 252mm]]> Product Detail

Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.

We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, Newcore can offer you best quality as well as services.
Specification of Stud Link Chain
Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 98 kg to 3010 kg
U1 Stud Link Chain:
Proof Load: 46kn – 1290kn
Breaking Load: 66kn – 1840kn
U2 Stud Link Chain:
Proof Load: 66kn – 1840kn
Breaking Load: 92kn – 2580kn
U3 Stud Link Chain:
Proof Load: 92kn – 2580kn
Breaking Load: 132kn – 3690kn

Technical Information

Parameter of Stud Link Chain
Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!

More

Feature of Stud Link Chain
1. Most stud link chain is used on larger vessels and is rarely available in sizes under 12.5mm diameter.
2. Stud link chain is normally supplied in shot lengths (27.5mtrs long) which can then be joined together using a Kenter shackle. Black bitumastic paint or galvanized finishes are available.
3. Continuous lengths can be made to order with optional extras with open end links, welded swivel assemblies, D type anchor shackles.
Package of anchor chain
Newcore Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Package material: wooden case and iron drum or bracket
Quality of Anchor Chain
Newcore Global Pvt. Ltd is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Certificate of Stud Link Chain
Marine chain has been recognized by 11 Classification Societies such as ABS, BV, CCS, CR, DNV, GL, KR, NK, RINA, RMRS, LR
]]> http://www.newcoreglobal.com/product/stud-link-chain/feed/ 0 Open Link Chain http://www.newcoreglobal.com/product/open-link-chain/ http://www.newcoreglobal.com/product/open-link-chain/#respond Mon, 07 Aug 2017 14:21:02 +0000 http://www.newcore.net.in/?post_type=product&p=742 Outside Length (L): 75mm – 420mm Outside Width (B): 45mm – 252mm Approx Weight: 85.41 kg to 2697.65 kg]]> Product Detail

As one of the most widely used anchor chain, open-link chain plays an important role in linking anchors and ships. Having manufactured steel products for more than a decade, Newcore Global Pvt. Ltd could provide you with the best quality and services.

We can also provide grade 1, 2 and 3 open link chain; marine anchor: Hall anchor, Japan Stockless Anchor, U.S.N Stockless Anchor and other marine castings, like Panama Chock, Fairlead Roller, and so on. With ISO: 9001 Quality Management System, Newcore can offer you best quality as well as services.
Specification of Open Link Chain

Diameter: 1/2 to 2-3/4 inches, 12.5 to 70 mm
Outside Length (L): 75mm – 420mm
Outside Width (B): 45mm – 252mm
Approx Weight (27.5m): 85.41 kg to 2697.65 kg
U1 Open – Link Chain:
Proof Load: 28.75kn – 901.60kn
Breaking Load: 57.71kn – 1813.00kn
U2 Open – Link Chain:
Proof Load: 41.20kn – 1264.20kn
Breaking Load: 82.60kn – 2528.40kn
U3 Open – Link Chain:
Proof Load: 56.40kn – 1768.90kn
Breaking Load: 112.80kn – 3537.80kn

Technical Information

Parameter of Open Link Chain

Following table is common data. we are able to accept orders of special shaped anchor chains. If you have any question, please welcome to contact us at once!



Packaging

Quality of Anchor Chain

Newcore Global Pvt. Ltd Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Certificate of Open Link Chain

Marine chain has been recognized by 11 Classification Societies such as ABS, BV, CCS, CR, DNV, GL, KR, NK, RINA, RMRS, LR

More

Package of anchor chain

Newcore Global Pvt. Ltd Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Package material: wooden case and iron drum or bracket

]]> http://www.newcoreglobal.com/product/open-link-chain/feed/ 0 Panama ChockAC BC U.S. http://www.newcoreglobal.com/product/panama-chockac-bc-u-s/ http://www.newcoreglobal.com/product/panama-chockac-bc-u-s/#respond Mon, 07 Aug 2017 14:05:12 +0000 http://www.newcore.net.in/?post_type=product&p=738 Material: ZG 230-450 Type: JIS F2017-1982 AC, BC, U.S. Weight: 71kg~422kg]]> Product Detail

Panama chocks are one of the most popular marine chocks in the world. We provide type AC, BC and US With multiple international certificates, our products as well as services could meet your needs completely.

Specification of Panama Chock AC
1) Model Number: 310/360/400/450/500
2) Weight: 253kg~395kg
3) A: 310mm~500mm
4) B:708mm~908mm
5) C: 639mm~644mm
6) D:541mm~549mm
7) E:652mm~854mm
Specification of Panama Chock BC
1) Model Number: 310/360/400/450/500
2) Weight: 276kg~422kg
3) A: 310mm~500mm
4) B:734mm~940mm
5) C: 684mm~700mm
6) D:462mm~478mm
7) E:652mm~854mm

Packaging

Packaging and Delivery

Packaging material: standard exporting wooden case

Delivery detail: depend on the quantity of your order

More

The company is fully equipped with production facilities, including:

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:

Surface Treatment

Polished, galvanized or bitumen painted

Quality of Panama Chocks

Newcore Global Pvt. Ltd is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide marine anchors: Hall Anchor; U.S.N. Stockless Anchor; Japan Stockless Anchor; We guarantee they are of the same best quality.

]]> http://www.newcoreglobal.com/product/panama-chockac-bc-u-s/feed/ 0 Chain Cable Stopper http://www.newcoreglobal.com/product/chain-cable-stopper/ http://www.newcoreglobal.com/product/chain-cable-stopper/#respond Mon, 07 Aug 2017 13:49:36 +0000 http://www.newcore.net.in/?post_type=product&p=734 Type: GB290-84 Weight: 8.6 kg~663.7 kg Certificate: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS]]> Product Detail

Here we provide small-sized cast steel bar type chain cable stoppers. They control anchor chains when necessary. Newcore Global Pvt. Ltd  has experience in producing marine equipment with international certificates. If you have any special request, please contact us!

Specification of JIS F 2023-1976
1) Nominal Number: 19~36
2) Nominal Diameter of Anchor Chain : 17mm~36mm
3) A: 190mm~342mm
4) B:270mm~490mm
5) C: 200mm~354mm
6) D:134mm~246mm
7) Weight: 17 kg~92 kg
Specification of JIS F 2015-1987
1) Nominal Number: 40~78
2) Nominal Diameter of Anchor Chain : 38mm~78mm
3) A: 378mm~715mm
4) B:540mm~1020mm
5) C: 390mm~720mm
6) D:336mm~617mm
7) Weight: 111 kg~682 kg

Packaging

Packaging and Delivery

Packaging material: standard exporting wooden case

Delivery detail: depend on the quantity of your order

Surface Treatment

Polished, galvanized or bitumen painted

Quality of Chain Cable Stopper

Newcore Global Pvt. Ltd Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide marine anchors: Hall Anchor; U.S.N. Stockless Anchor; Japan Stockless Anchor; We guarantee they are of the same best quality.

 More

The company is fully equipped with production facilities, including:

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:



]]> http://www.newcoreglobal.com/product/chain-cable-stopper/feed/ 0 Roller Fairlead for Chain Cable http://www.newcoreglobal.com/product/roller-fairlead-for-chain-cable/ http://www.newcoreglobal.com/product/roller-fairlead-for-chain-cable/#respond Mon, 07 Aug 2017 13:42:15 +0000 http://www.newcore.net.in/?post_type=product&p=730 Type: GB290-84 Weight: 8.6 kg~663.7 kg Certificate: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS]]> Product Detail

Roller fairleads for chain cable control anchor chains when necessary. Newcore Global Pvt. Ltd Corporation has manufactured marine equipments for many years, so that it will be your best bet to buy cable stoppers in our company.

pecification of Roller Fairlead for Chain Cable
1) Weight: 8.6 kg~663.7 kg
2) Nominal Diameter of Anchor Chain : 12.5mm ~68mm
3) H: 112mm~444mm
4) L:176mm~604mm
5) L1: 102mm~424mm

Packaging

Packaging and Delivery

Packaging material: standard exporting wooden case

Delivery detail: depend on the quantity of your order

Surface Treatment

Polished, galvanized or bitumen painted

Quality of Roller Fairlead for Chain Cable

Newcore Global Pvt. Ltd Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.

Other mooring equipment

We provide marine anchors: Hall Anchor; U.S.N. Stockless Anchor; Japan Stockless Anchor; We guarantee they are of the same best quality.

 More

The company is fully equipped with production facilities, including:

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:







]]> http://www.newcoreglobal.com/product/roller-fairlead-for-chain-cable/feed/ 0
